Process conditionsReaction media, batch size, pressure, temperature and cycle
Engineering detail
01
02
03
04
Designed around the reaction—not a standard catalogue vessel.
PIIPL process reactors are configured around reaction duty, working volume, operating pressure and temperature, heat-transfer demand, mixing objective and material compatibility. Nozzle orientation, access, instrumentation and supporting structure are coordinated with the plant layout and maintenance strategy.
Thermal dutyJacket, coil or external-loop requirements assessed by duty
Mixing objectiveBlend, suspension, dispersion or heat-transfer circulation
Mechanical integrationDrive, seal, nozzles, supports, access and instrumentation
Configuration matrix
Engineering decisions that shape the reactor.
Final construction is established from approved process data, applicable project requirements and a coordinated mechanical design review.
Heat transfer
Jacket and coil arrangements can be evaluated for heating, cooling and cycle-time requirements.
Agitation
Impeller style, diameter, speed and drive duty are selected around rheology and the mixing objective.
Materials
Wetted materials, corrosion allowance, lining and finish are considered from media compatibility and service.
Controls & access
Nozzles, manways, vents, drains and instrument interfaces are coordinated for operation and maintenance.
Process applications
Built for diverse production duties.
The equipment configuration is adapted to the product, process sequence and site operating philosophy.
Adhesives
Controlled blending and reaction of resin systems
Chemical processing
Batch and continuous process duties
Cosmetics
Mixing, heating and product consistency
Food & beverage
Process-compatible fabrication and access
Paints & coatings
Dispersion, blending and thermal control
Pharmaceutical
Application-specific finish and cleanability
Pulp & paper
Chemical preparation and process treatment
Polymers
Temperature-controlled reaction and mixing

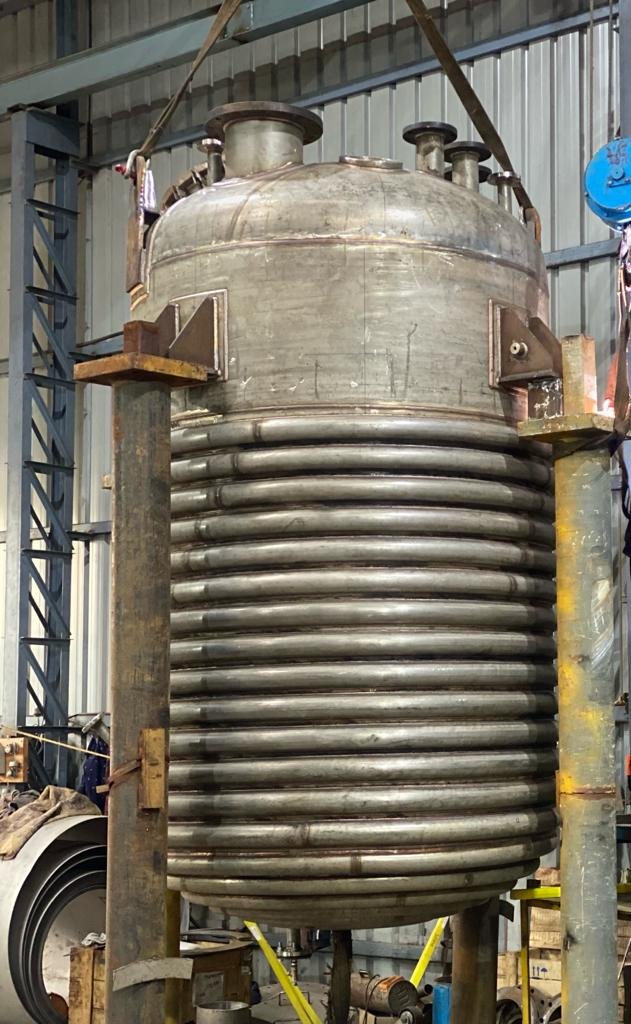

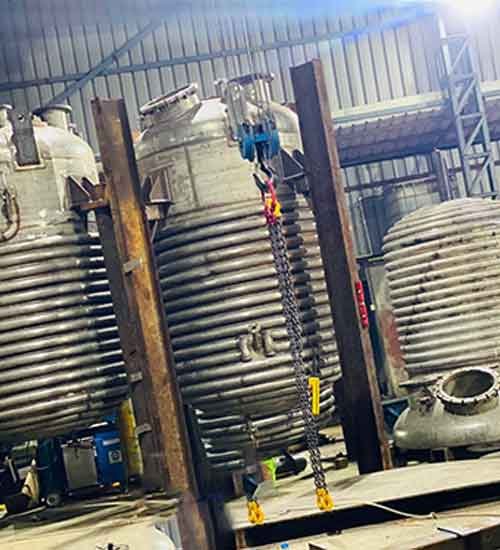

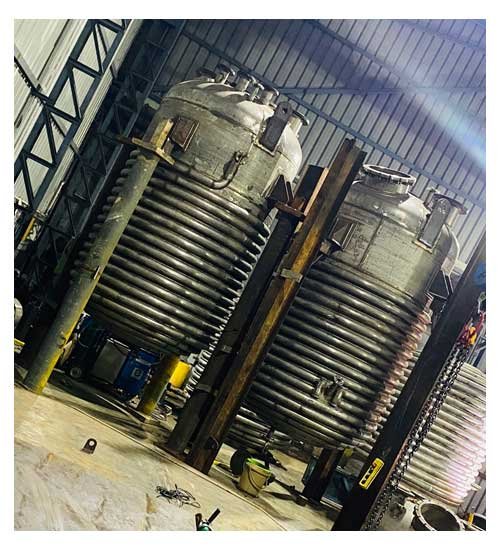

Manufacturing evidence / 03 views
