What types of industrial agitators does PIIPL manufacture?

PIIPL manufactures anchor, propeller, hydrofoil, double helical ribbon, side entry, and bottom entry agitators for various mixing applications.

What is an industrial agitator used for?

An industrial agitator is used to mix, blend, suspend, or homogenize liquids and solids within a tank or reactor for chemical, pharma, and food processes.

How do I choose the right agitator for my application?

The right agitator depends on fluid viscosity, tank geometry, mixing intensity required, and the process (blending, suspension, or dispersion).

What materials are PIIPL agitators made from?

PIIPL fabricates agitators in stainless steel, mild steel, and other alloys depending on the process fluid and corrosion resistance needed.

Does PIIPL provide custom agitator design services?

Yes, PIIPL designs agitators to match specific tank dimensions, RPM, and mixing requirements provided by the client.

Agitator Manufacturers in India | Industrial Agitators

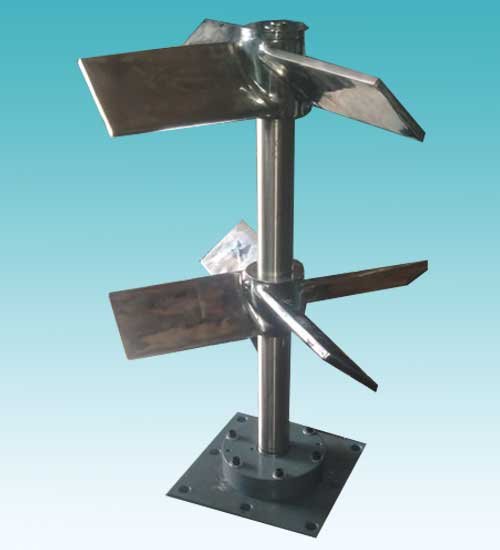

Industrial agitator engineered by PIIPL — 01 / Mixing systemVessel and duty matched

Mixing fundamentals

Controlled movement for a defined process result.

An industrial agitator converts drive power into fluid motion through a selected impeller. The system is configured around fluid properties, vessel geometry, liquid level and the result required—blending, suspension, gas dispersion, reaction support or heat-transfer circulation.

HomogenisationReduce concentration and temperature gradients
SuspensionKeep suitable solids distributed through the batch
Gas dispersionPromote controlled gas–liquid contact
Heat transferImprove circulation across the transfer surface

Drive train

Power is selected from the real mixing duty.

The motor, gearbox, shaft and support arrangement are considered as an integrated mechanical system. Required power and torque depend on the process medium, impeller geometry, operating speed and number of mixing stages.

Viscosity & specific gravityImpeller diameterRotational speedPower numberSolids loadingNumber of impellers

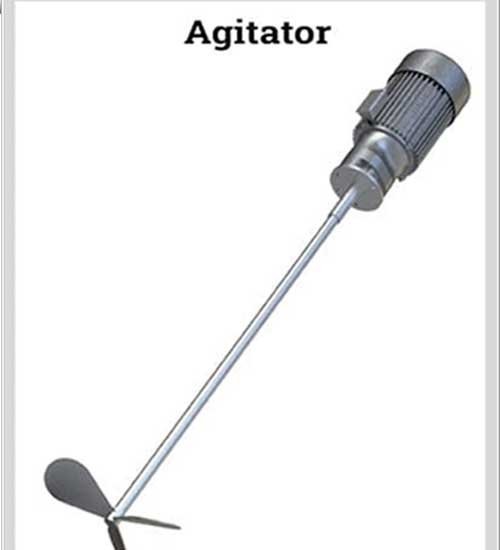

Industrial agitator drive assembly — Drive assembly

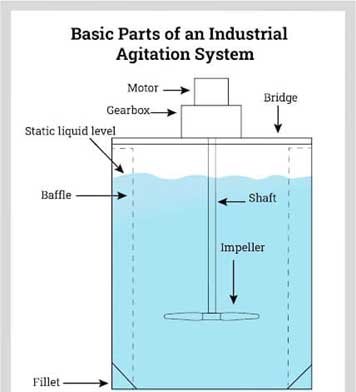

Main parts of an industrial agitator system — System architecture

Impeller hydraulics

Flow patterns of agitator impellers.

The dominant circulation direction influences mixing time, suspension, shear and vessel turnover. Selection is made against the required process result.

Axial flow

Top-to-bottom vessel turnover.

Axial impellers move fluid substantially parallel to the shaft. They are commonly considered for blending, solids suspension and heat-transfer circulation where strong vertical movement and efficient bulk turnover are required.

High circulation
Low-to-moderate shear
Bulk blending duties

Radial flow

Energy directed across the vessel.

Radial impellers discharge fluid approximately perpendicular to the shaft, creating circulation loops above and below the impeller. Baffles are normally considered to control swirling and improve useful mixing.

Higher local shear
Gas and dispersion duties
Baffle coordination

Tangential flow

Circular motion around the shaft.

Tangential movement follows the vessel circumference and can produce bulk rotation with limited vertical exchange. Vessel geometry, clearances and baffle strategy are reviewed to avoid an ineffective vortex-dominated pattern.

Circumferential motion
Low vertical turnover
Geometry-sensitive selection
